CMessage Class Reference

CMessage. More...

#include <Message.h>

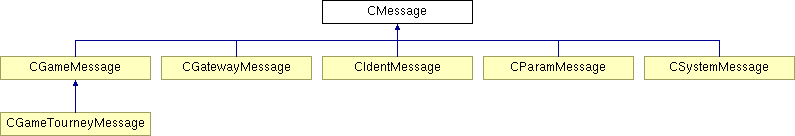

Inheritance diagram for CMessage:

List of all members.

Public Member Functions
	CMessage ()
	CMessage.
	CMessage (const CMessage &m)
	CMessage.
	~CMessage ()
	~CMessage
void	Reply ()
	Reply.
void	SetSender (uint32 sender)
	SetSender.
void	SetRecipient (uint32 recipient)
	SetRecipient.
void	SetTimeStamp (TIMESTRUCT timeStmp)
	SetTimeStamp.
void	SetCRC (uint32 CRC)
	SetCRC.
void	SetMsgType (MsgTypes mType)
	SetMsgType.
uint32	GetSender () const
	GetSender.
uint32	GetRecipient () const
	GetRecipient.
TIMESTRUCT	GetTimeStamp () const
	GetTimeStamp.
uint32	GetCRC () const
	GetCRC.
uint32	GetLength () const
	GetLength.
uint32	GetMsgType () const
	GetMsgType.
void	SetMsgBody (int8 *ptr, uint32 size, bool bDoCopy=true, bool bIsPacked=false)
	SetMsgBody().
int8 *	GetMsgBody (bool bDoCopy=true) const
	GetMsgBody().
uint32	GetMsgBodySize () const
	GetMsgBodySize().
bool	IsBufferPacked () const
	IsBufferPacked.
virtual void	operator= (const CMessage &m)
	operator =

---

Detailed Description

CMessage.

Description: : The message class is the primary class which holds messages passed between modules

Limitations: : None

---

Constructor & Destructor Documentation

CMessage::CMessage (   )

CMessage. Description:: Default constructor Limitations: None

CMessage::CMessage (  const CMessage &  m  )

CMessage. Description:: Copy constructor Parameters: m,:  CMessage to copy into new CMessage Limitations: If the CMessage represents a derived class, DO NOT call the copy constructor. It is very likely that you will wipe out the virual function table!

CMessage::~CMessage (   )

~CMessage Description: Default Destructor Limitations: None

---

Member Function Documentation

uint32 CMessage::GetCRC (   )  const

GetCRC. Description: Returns the CRC checksum of the message Returns: uint32: The CRC checksum of the message Limitations: None

uint32 CMessage::GetLength (   )  const

GetLength. Description: Returns the length of the message body Returns: uint32: The message length Limitations: None

int8 * CMessage::GetMsgBody (  bool  bDoCopy = true  )  const

GetMsgBody(). Description: Returns the Message Header Returns: pointer to message body Limitations: None

uint32 CMessage::GetMsgBodySize (   )  const

GetMsgBodySize(). Description: Returns the Message Body size Returns: size of message body Limitations: None

uint32 CMessage::GetMsgType (   )  const

GetMsgType. Description: Returns the message type Returns: uint32: The message type Limitations: None

uint32 CMessage::GetRecipient (   )  const

GetRecipient. Description: Returns the recipient ID of the message Returns: uint32: The recipient ID Limitations: None

uint32 CMessage::GetSender (   )  const

GetSender. Description: Returns the sender ID Returns: uint32: The sender ID of the message Limitations: None

TIMESTRUCT CMessage::GetTimeStamp (   )  const

GetTimeStamp. Description: Returns the timestamp of the message Returns: timestamp: The message timestamp Limitations: None

bool CMessage::IsBufferPacked (   )  const

IsBufferPacked. Description: Returns true if the message buffer is packed and false otherwise. Returns: True if the buffer is packed and false otherwise. Limitations: None

void CMessage::operator= (  const CMessage &  m  )  [virtual]

operator = Description: Copies all attributes from the current message into another Parameters: m,:  CMessage that will be filled with the current attributes Returns: void Limitations: None

void CMessage::Reply (   )

Reply. Description: This function provides a convienient way to create a reply message. The source and destinaton addresses are swapped so that the message will be returned to the sender when mailed (through the dispatcher). Returns: void Limitations: None

void CMessage::SetCRC (  uint32  CRC  )

SetCRC. Description: Sets the CRC checksum for the message Parameters: CRC,:  The CRC to Set Returns: void Limitations: None

void CMessage::SetMsgBody (  int8 *  ptr, uint32  size, bool  bDoCopy = true, bool  bIsPacked = false )

SetMsgBody(). Description: Sets the pointer to the message body Parameters: ptr,:  pointer to message body size: size of message body Returns: void Limitations: size must be actual size of data pointed to by ptr

void CMessage::SetMsgType (  MsgTypes  msgType  )

SetMsgType. Description: Sets the message type Parameters: msgType,:  The message type Returns: void Limitations: None

void CMessage::SetRecipient (  uint32  recipient  )

SetRecipient. Description: Sets the intended recipient of the message Parameters: recipient,:  The recipient ID Returns: void Limitations: None

void CMessage::SetSender (  uint32  sender  )

SetSender. Description: Sets the sender of the message Parameters: sender,:  The sender ID Returns: void Limitations: None

void CMessage::SetTimeStamp (  TIMESTRUCT  timeStmp  )

SetTimeStamp. Description: Sets the timestamp on the message Parameters: timeStmp,:  The timestamp to Set Returns: void Limitations: None

---

The documentation for this class was generated from the following files:

• Message/Message.h
• Message/Message.cpp

---
